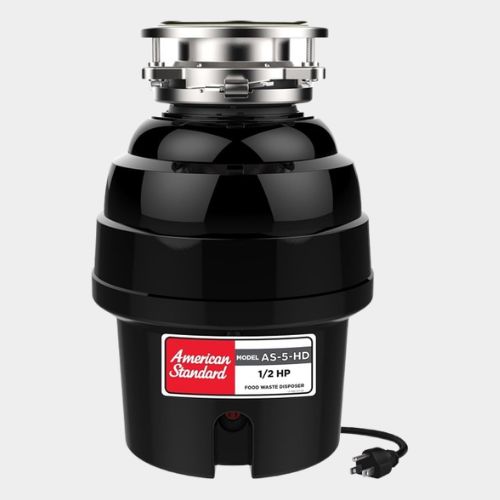

American Standard 10-US-AS-5-HD Garbage Disposal Review

Not every 1/2 HP disposal is built the same way. Two units can share the exact same horsepower number and still feel completely different under a sink, one droning through every cycle, the other barely noticeable from the next room.

The American Standard 10-US-AS-5-HD is the Heavy Duty version of the standard AS-5, and the difference isn’t the motor size. It’s what American Standard wrapped around that motor: a premium sound shell, a larger grinding hopper, and a noticeably heavier build, all aimed at a kitchen that runs its disposal often and doesn’t want to hear it doing so.

This review looks at what the Heavy Duty (HD) upgrade actually buys you over the standard AS-5, what real owners are reporting after installation, and who should spend the extra money on this version instead.

American Standard 10-US-AS-5-HD, 1/2 HP Heavy Duty Garbage Disposal Specifications

Specification	Details
Brand	American Standard
Model Number	10-US-AS-5-HD
Horsepower (HP)	1/2 HP Heavy Duty
Motor Type	Permanent Magnet Motor
Feed Type	Continuous Feed
Grinding Components	Stainless Steel
Mount Type	Standard 3-Bolt Mounting System
Voltage	110V AC
Product Dimensions	8.7 × 8.7 × 13.2 inches
Item Weight	12.12 lbs
Color / Finish	Black
Dishwasher Connection	Yes
Safety Features	Overload Protection, Manual Reset Button
Septic Safe	Yes (per manufacturer guidelines)
Included Components	Disposer Unit, 3-Bolt Mounting Flange, Elbow Flange and Elbow, Removable Splash Guard
Warranty	8-Year Warranty (American Standard)

American Standard 10-US-AS-5-HD, 1/2 HP Heavy Duty Garbage Disposal Key Features

1/2 HP Permanent Magnet Motor

The 10-US-AS-5-HD runs the same 1/2 HP class permanent magnet motor family as the standard AS-5, tuned for daily household waste rather than commercial-scale grinding. Permanent magnet motors reach full torque as soon as you flip the switch, with no slow ramp-up that can leave waste sitting in the chamber before grinding starts.

American Standard is upfront about one thing worth knowing here: the horsepower printed on the box reflects the motor’s rated capacity, not the actual power draw during every grind cycle. That’s true across most residential disposals, not just this one, but it’s worth keeping in mind if you’re comparing HP numbers across brands as if they were a single, standardized measurement.

Heavy Duty Sound Shell

This is where the “HD” in the model name actually shows up. American Standard wraps the motor housing in a premium sound shell that isn’t present on the standard AS-5, and it’s the main reason this unit weighs nearly three pounds more (12.12 lbs versus 9.4 lbs on the standard model).

Owner reviews back this up consistently. Multiple verified buyers describe the unit as “very quiet,” with one noting it’s “quiet with an easy install” after replacing a unit that had served them well in a previous home. For an open kitchen, a rental, or a household with a baby who naps during the day, that sound dampening is the actual reason to pick this model over the standard AS-5.

Extra Large Hopper

The Heavy Duty model also gets a larger grinding chamber, or hopper, than the standard AS-5. A bigger hopper means more food waste can sit in the grinding chamber at once before it needs to clear, which matters if you’re scraping a full dinner’s worth of plates in one go rather than feeding waste in slowly.

This pairs naturally with the sound shell upgrade. You’re not just getting a quieter motor, you’re getting one that can handle a slightly larger batch of waste per cycle without backing up.

Anti-Jam Swivel Impeller Grinding System

Instead of fixed grinding lugs, this disposal uses swivel impellers that pivot as waste passes through. American Standard’s own installation manual notes something specific here: the impellers make a clicking sound as they initially swing into place when the unit starts, and that’s documented as normal operation, not a defect.

That detail actually matters for buyers researching this model. A couple of verified reviewers mentioned hearing a “loud click” or “popping noise” at startup and wondered if their unit was faulty. Per American Standard’s own manual, that’s expected behavior from the swivel impeller design settling into position, not a sign something’s wrong. If the noise happens once at startup and the disposal grinds normally afterward, there’s nothing to worry about.

Stainless Steel Grinding Components

The grinding components are stainless steel, the same standard American Standard applies across its Slim Line and Heavy Duty models. Stainless steel resists corrosion better than the galvanized components found in many entry-level competitors and holds a sharper grind over years of daily use.

Installation & Maintenance

Installation follows American Standard’s standard 3-bolt mounting sequence: the disposer connects to the sink flange assembly, locks in with a quarter turn, and the discharge elbow attaches with a rubber gasket and two screws. If you’re replacing an existing 3-bolt disposal, most of the original mount can often stay in place, which cuts install time down.

Real owner feedback backs up how straightforward this actually is. One reviewer reported the swap took about 15 minutes and “mated up with existing plumbing” without issue. Another called it simply “easy to install.”

For maintenance, the motor is permanently lubricated, so don’t attempt to oil it. Run cold water while grinding, keep grease out of the line, and pull the removable splash guard for a periodic rinse. Never run lye based or chemical drain cleaners through the line. American Standard’s warranty documentation specifically excludes corrosion damage caused by chemical drain cleaners.

Daily Use Experience

Owner feedback on this model clusters around two things: it’s quiet, and it’s easy to install. Across multiple verified purchases, buyers describe it as running with an “instant start” that “doesn’t need to cycle up,” which lines up with how permanent magnet motors behave in practice.

The one recurring question in reviews is the startup click from the swivel impellers, and as covered above, that’s documented normal behavior rather than a fault. Outside of that, the pattern in owner feedback is overwhelmingly about how little the unit draws attention to itself during daily use, which is exactly the point of the Heavy Duty sound shell.

Warranty

American Standard backs the 10-US-AS-5-HD with an 8-year manufacturer warranty, according to the brand’s official Joneca warranty schedule. That sits two years above the standard 1/2 HP AS-5, which carries a 6-year term, reflecting the Heavy Duty build’s added sound shell and larger hopper.

The warranty also includes a separate lifetime corrosion warranty for the original purchaser, though a valid sales receipt is required for any claim, and coverage is non-transferable if the home changes hands.

American Standard 10-US-AS-5-HD, 1/2 HP Heavy Duty Garbage Disposal Pros and Cons

American Standard 10-US-AS-5-HD vs the Standard AS-5

Feature	American Standard 10-US-AS-5-HD	American Standard 10-US-AS-5
Motor Power	1/2 HP Heavy Duty	1/2 HP
Sound Shell	Premium Sound Shell	Standard Housing
Hopper Size	Extra Large	Standard
Item Weight	12.12 lbs	9.4 lbs
Product Dimensions	8.7 × 8.7 × 13.2 inches	6.3 × 6.3 × 13 inches
Warranty	8 Years	6 Years
Best For	Noise-Sensitive Kitchens, Heavier Daily Waste	Compact Cabinets, Lighter Daily Waste

Further Reading:
American Standard 10-US-AS-5 1/2 HP Garbage Disposal Review
American Standard 10-US-AS-3 1/3 HP Garbage Disposal Review
Moen Prep Series GT50C 1/2 HP Garbage Disposal Review
GE GFC520N 1/3 HP Garbage Disposal Review
KRAUS WasteGuard KWD110-50MBL 1/2 HP Ultra-Quiet Garbage Disposal Review

Conclusion

The 10-US-AS-5-HD earns its Heavy Duty name honestly. It’s not a marketing label slapped on the same internals as the standard AS-5. The sound shell, the larger hopper, and the added weight are real differences, and real owner reviews back up that the quiet operation isn’t just a spec sheet claim.

If your kitchen is open to a living room, if you run the disposal daily with a family’s worth of waste, or if you’ve been annoyed by a loud unit in the past, the Heavy Duty upgrade is worth the price difference over the standard AS-5. If you’re working with a tight cabinet and light, occasional use, the standard AS-5 still gets the job done for less.
