Garbage Disposal Splash Guard Sizes (Are They Universal?)
Garbage disposal splash guard sizes are not universal, and choosing the wrong one is a common mistake. Most disposals use one of two standard sizes, and even a small difference can cause poor fit, leaks, or the guard slipping into the unit.
If you’re wondering about garbage disposal splash guard sizes, the key is matching the correct diameter to your brand and model. This guide breaks down the two standard sizes and shows you how to measure properly so you get the right fit the first time.
The Two splash guard Standard Sizes

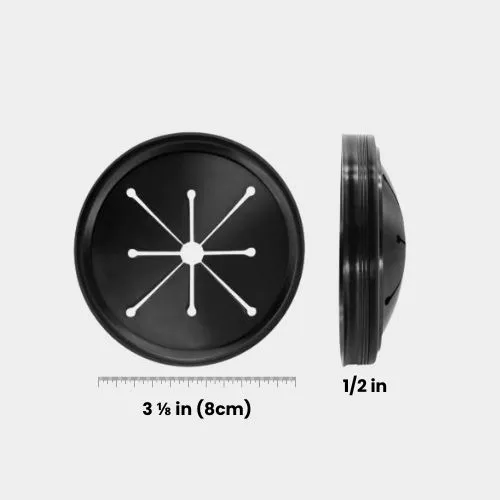

Garbage disposal splash guards come in two outer diameter measurements:
| Size (Outer Diameter) | Brands That Use It |
|---|---|
| 3.125 inches (3-1/8″) | Waste King, GE, Whirlaway |
| 3.25 inches (3-1/4″) | InSinkErator, Moen, Kohler |
That’s a difference of just 1/8 inch — easy to overlook, but enough to cause a poor fit. A guard that’s too small will slip down into the chamber. One that’s too large won’t seat flush in the opening.
How to Measure Your Splash Guard
If you’re not sure which size you need:
- Remove the existing splash guard (if possible — see the section below on removable vs. fixed types)
- Measure the outer diameter across the widest point of the rubber flaps
- Match it to the table above or check your disposal’s model number against the manufacturer’s specs
If you can’t remove the guard, measure the inner diameter of the drain opening from above. The splash guard’s outer edge will be slightly larger than the opening to create a snug fit.
Removable vs. Fixed Splash Guards
Not all splash guards come out the same way. This is the detail most people miss when ordering a replacement.
Removable Guards
These guards sit in the drain opening and can be pulled or twisted out by hand:
- Waste King: Lifts straight out — no tools needed
- Moen: Pops out from the top
- InSinkErator Evolution series: Features the QuietCollar design, which twists counterclockwise to unlock and lifts out. The QuietCollar also acts as sound insulation, reducing noise during operation.
Replacing a removable guard takes about 30 seconds. Pull the old one out, push the new one in.
Fixed Guards
These guards are molded into or attached below the mounting assembly. You can’t access them from above:
- InSinkErator Badger series: The splash guard sits beneath the mounting flange. To replace it, you need to disconnect the plumbing, remove the disposal from the mount, and then access the guard from below.
This turns a simple swap into a 20-30 minute job. It’s still DIY-friendly, but you’ll need a bucket for residual water and basic plumbing tools.
For step-by-step removal instructions for both types, see our guide on How to Remove a Garbage Disposal Splash Guard.
InSinkErator QuietCollar — Worth Knowing About
InSinkErator’s Evolution line uses a QuietCollar sink baffle instead of a traditional rubber splash guard. It serves the same purpose — preventing splashback — but also includes a sound-dampening chamber that reduces grinding noise.
The QuietCollar fits Evolution Excel, Evolution Compact, and Evolution Essential models. It’s not compatible with Badger models or other brands.
If you’re replacing a QuietCollar, make sure you buy the InSinkErator-specific replacement (part #QCB-AM). Generic splash guards won’t fit the Evolution mount.
Buying the Right Replacement
When shopping for a splash guard:
- Check your brand and model first. The size table above covers most situations.
- Measure if you’re unsure. A $2 guard that doesn’t fit is still a wasted trip.
- Multi-packs are cheap insurance. Splash guards wear out every 2-3 years. Buying a 3-pack costs almost the same as a single guard and saves future hassle.
- Material matters. Antimicrobial rubber guards resist odor-causing bacteria better than standard rubber.
Not sure if your disposal is compatible with common replacements? Our guide on Are Garbage Disposals Universal? covers mounting and sizing compatibility across brands.
The Bottom Line
Splash guards come in two sizes — 3.125″ and 3.25″ — and the right one depends on your disposal brand. Check whether yours is removable or fixed before you start the swap, and always measure to confirm the fit.
